Display Studio How do I disable audio from an embedded video clip in Daktronics Show Control?

Topic

  • Disable audio from an embedded video clip in a Display Studio
  • Show Control's Display Studio script buttons
This feature allows the ability to disable audio that is embedded in a video clip from a Display Studio play command.

Environment

  • Product: Display Studio version 2.10.0.33 or later and DMP-8000 8.4
  • Components: Interactive audio
  • Control System: Show Control, Live Clips

    Steps

    For scripting basics, see: Display Studio How do I create script buttons in a Daktronics Show Control System

    Create a new or edit a script button.

    1. Right click, select New button.
    2. Step 1: Choose DMP-8000 Player Control and go to the next step.
    3. Step 2: Place a check in front of the appropriate player(s) and go to the next step.
    4. Step 3: Select Play and go to the next step.
    5. Step 4: Click Add.
      1. Navigate to your content and select Open.
      2. Click on the file and then select gear icon above the content name.
      3. Choose Audio from the dropdown list.
      4. To disable audio, remove the check mark in front of Embedded Audio.
    6. Save.

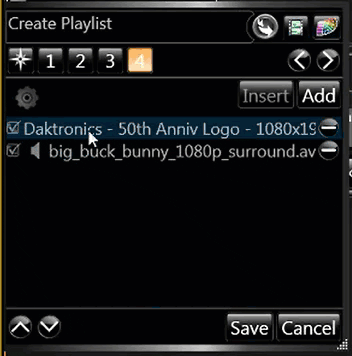

    See animation of the process below:  (Version 2.11)

    enable disable embedded audio.gif

    Related Resources

    Display Studio: How do I customize the duration of my media file in a button

    Display Studio How do I create script buttons in a Daktronics Show Control System
