Display Studio What is the trigger widget for Daktronics Show Control System?

Topic

  • The Display Studio Trigger Widget can receive commands from other video switchers or system controllers that are GPI command capable.  The Display Studio Trigger Widget accepts a simple command protocol and allows you to easily map that command to any button in Display Studio.  This will provide the ability to "trigger" a Daktronics system to do something from a third-party system.
  • The Trigger Widget is a one-time purchase of 20, 100 or 999 triggers. No licensing or yearly renewal fees.
  • Examples include:
    • Triggering Daktronics from a production switcher for big moments like "show open" or scoring event.
    • Taking commands from third party systems such as Cisco, Ross Video, and Click Effects.
    • Taking commands from lighting system controllers and other third-party systems used in spectaculars and houses of worship.
  • For more, read Create Big Moments with Triggers.

Environment

  • Product:
  • Component: Display Studio Trigger Widget
  • Control System: Show Control

Steps

  1. Once the Display Studio Widget installer file has been received from Daktronics, run the .exe file.
  2. Go to Programs and Features in the control panel on your windows machine and find Daktronics Display Studio
  3. Select that program and choose change/modify
  4. Follow the prompts, saying yes/next to all settings keeping them the same until you get to the Plugins window

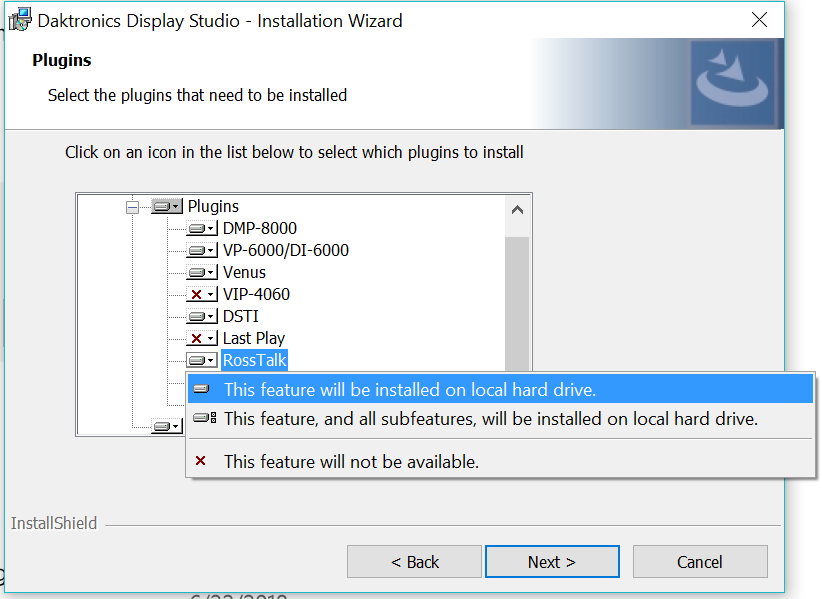

  5. Click on the plugin labelled RossTalk and choose the selection that says 'This feature will be installed on local hard drive.' to enable the Display Studio Trigger Widget.

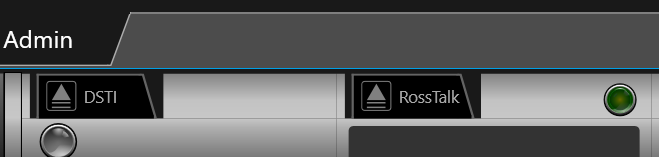

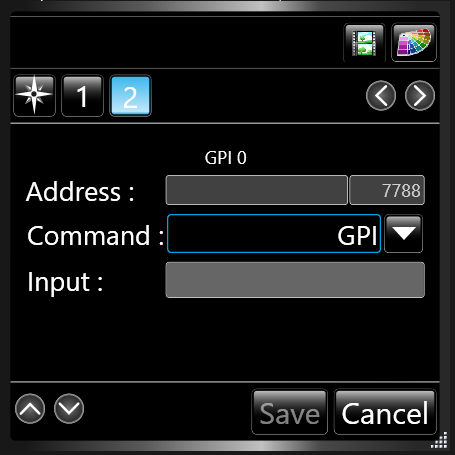

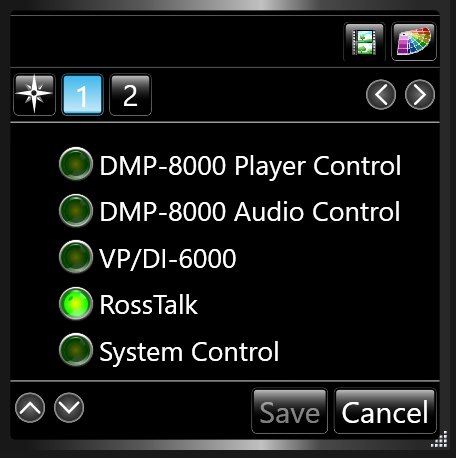

  6. Once enabled, the next time Display Studio is opened, you will see the ability to build trigger buttons or to set up Display Studio to receive trigger commands from third party software. For operational instructions, see Display Studio Trigger Widget: How to Add Commands to the widget?
    Widget
    Trigger Button

KB ID: 000002520
