Venus Displays: How do I find the dimensions of my display?

Topic



  • What are the pixel dimensions of Daktronics message center/marquee/electronic reader board?
  • Find my display size.

Environment

  • Product: Venus Displays App
  • Components:
  • Control System: Venus Control System

Steps

Find Display size via Venus Displays App

  1. Log into Venus Control Suite.  See: Venus Accounts: How do I log in to Venus Control Suite?
  2. Open Venus Displays App from the Apps Menu located in the top right of the VCS landing page.
  3. Click on an existing display.

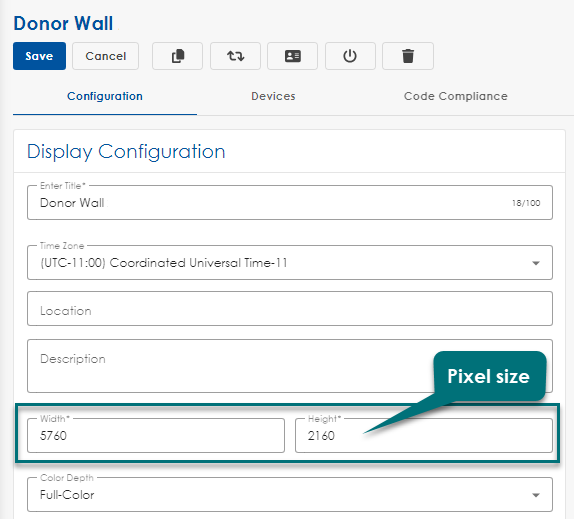

  4. Under the Configuration tab, locate the display's width and height.




Alternate method: Find Display size for locally hosted system.

  1. Log into Venus Control Suite.
  2. Click on the Main Menu icon in the upper left corner (three lines).
  3. Click on Displays.

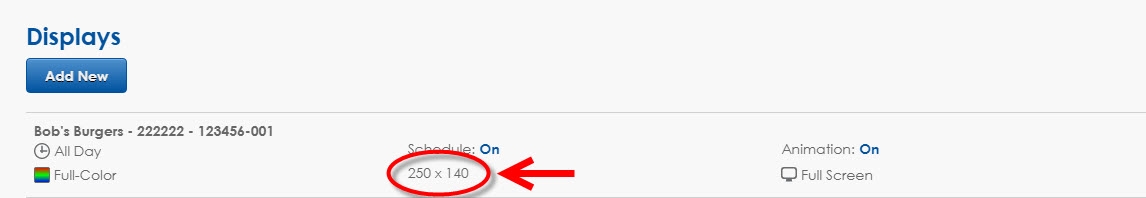

  4. Your display size will be listed in the middle column. Display size represents pixels wide x pixels high, i.e. 250 pixels wide x 140 pixels high.
    Displays Dimensions.jpg



KB ID: 000002376
