How to wire signal between outdoor gyrus scoreboard and a timer display?

Topic

  • How do I wire copper signal between an outdoor scoreboard and a pitch count or time clock display with Gyrus drivers.
  • How to wire current loop signal between an outdoor scoreboard with a Gyrus driver to a pitch count or time clock display.
  • How to connect a TI clock with an existing scoreboard that is controlled by a Gyrus driver.
  • How to wire signal from scoreboard to a Pitch Count display.
  • How to wire signal from scoreboard to a Speed of Pitch display.
  • How to wire signal from scoreboard to an AT Bat  display.
  • How to install a Pitch Count display.
  • How to install a Speed of Pitch display.
  • How to install an At Bat display.

Environment

  • Product: Outdoor Scoreboard that originally shipped with a gyrus driver AND Pitch count or time clock with a gyrus driver
    • Scoreboard with a manufacture date of 22 April 2015 or later
    • BA-2035
    • BA-2034
    • BA-2033
    • Note: These stipulations are not exact and can be updated when you know more. For example, this solution worked for a BA-2004 from 2003 with pre-gyrus drivers (Case 379055). The surge card built into it (0P-1110-0011) was wired to a surge card kit in the new BA-2033 (0A-1782-0004).
  • Component: 1  Surge Card per Scoreboard Cabinet, 2 conductor, 22 awg Stranded, Shielded Signal Wire
  • Control System:

Steps

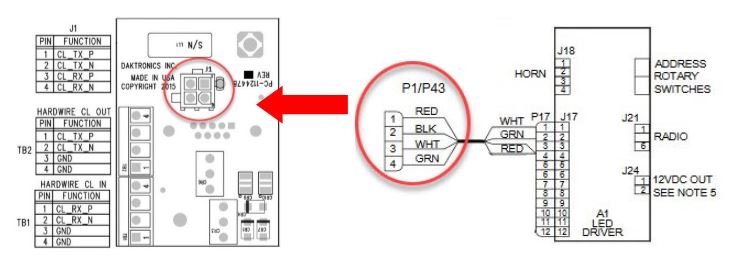

  1. Ensure P1/P43, located in the driver enclosure, is plugged into J1 of each surge card.

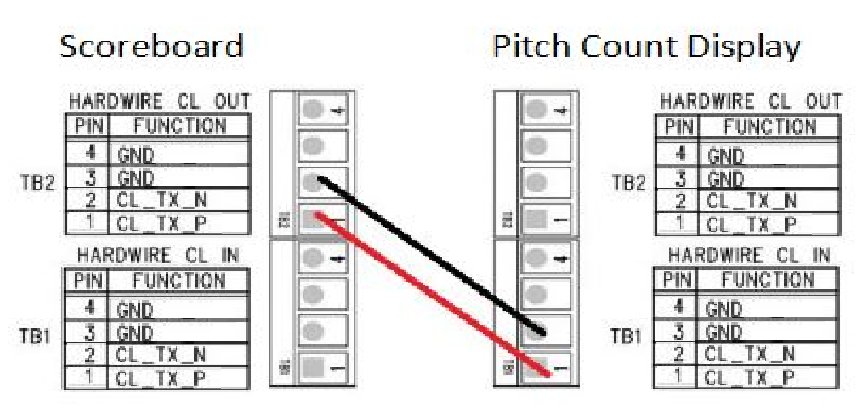

  1. On the scoreboard, wire signal cable into TB2  (Signal/CL OUT).  Positive on Pin 1, Negative on Pin 2.
  2. On the pitch count or time clock display, wire signal cable into TB1 (Signal/CL IN). Positive on Pin 1, Negative on Pin 2.

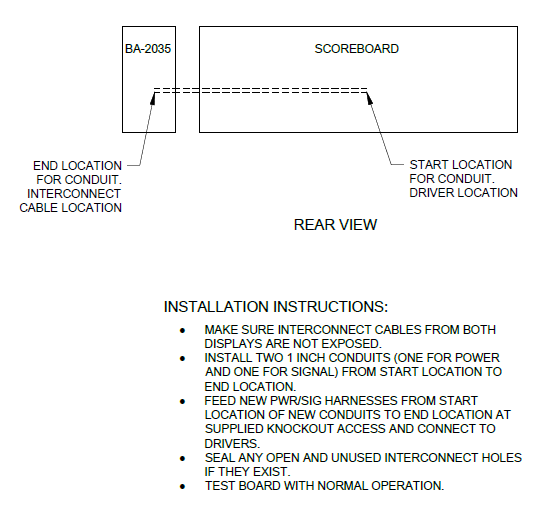

  1. Installation Instructions:


KB ID: 000002167
