Display Studio How do I build a requested stats button for DSTI data in my Daktronics Control System?

Topic

Making and using an ERTD requested stats button in Show Control's Display Studio
Request stats to play for a specific team or individual player

Environment

Product: Display Studio
Components: Stats Request
Control System: Show Control System (SCS)

ERTD Stats Requests let you create one piece of content and reuse it for multiple players or teams. Use an ERTD Stats Request to populate the desired player/team stat on the fly without creating a dedicated piece of content for each beforehand.
For example, if you want to show a player's Free Throws Made/ Attempted/Percentage, you can create ONE piece of generic content; then, during the live game dynamically select any player that comes to the free throw line via the Stats Request scripting button.

New method with JSON sources: Display Studio: How do I build a requested data/stats button with a Data Studio source for Daktronics Show Control System?

Steps

🔽Use the arrows to open and collapse the sections.

Button Creation

Adding the stats request line.

To add a line for a stats request, right-click and select 'New Button'.
Click the '+' in the bottom left-hand corner.

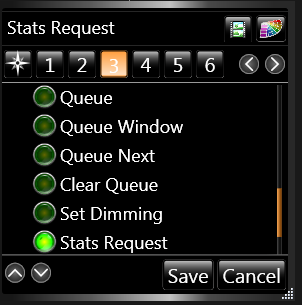

Choose 'System Control', then 'Advanced', and finally 'Stats Request'.

Fill out the parameters

As follows:

Protocol: UDP/IP
Address: 255.255.255.255
Port: 21322 (or whichever requested stats port you are using in DSTI. The same port is used for Data Studio.). Determining the port for a requested stat script

Leave the rest blank.

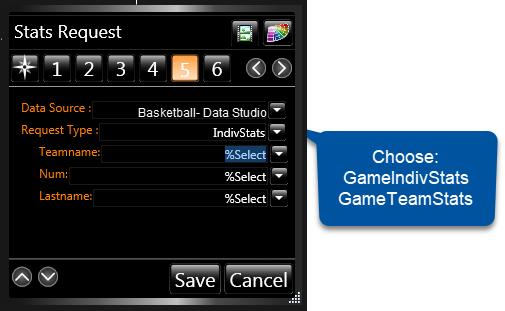

Select the appropriate Data Source (DakStats, StatCrew, etc.) and Request Type (IndivStats). See examples below: Note: Anything left as %Select will be an option to choose when the button is pressed in a fly-out panel on the right hand side of the screen.

Data Studio Basketball (NCAA) version Version 19.12.404.0 or later.

Note: If the Source is not available, see: Show Control System: Display Studio button, my Data Studio source is not available for ERTD requested stats.

Play mode for stats request

Click the star next to button/step 1 to add a second line of script.

Add a line that plays the content for the stats

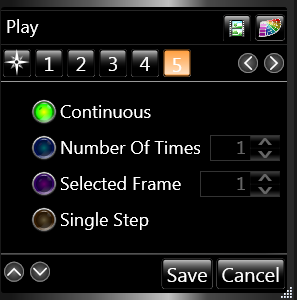

Select the + and then make a normal play button that plays the file needed to the correct zone.

Click Save.

Using the button

Once the button is saved, you need to perform the following steps to use the stats request button:

Click on the Stats Request script button just created and a window will fly out on the right hand side (similar to a queue in a Quick Display Container).

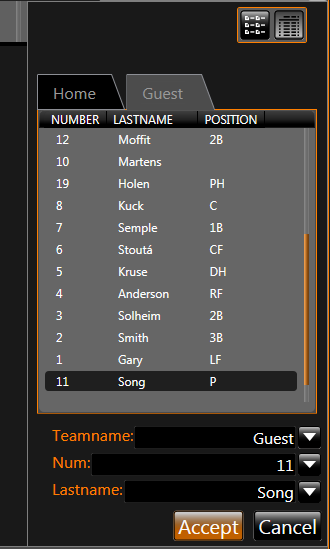

Within the new window, select the team tab the stats request is for (Guest), then choose the appropriate player (11 Song; P), and then select Accept.

For more information on Requested Stats, watch the video below:

How to request Home and Guest team request stats with a single request
Display Studio: How do I build a requested data/stats button with a Data Studio source for Daktronics Show Control System?

KB ID: 000001446
