Content Studio: How do I create presentations with data using Daktronics Display Studio version 2.17 or earlier?

Topic

What are some tips and tricks for creating presentations with Data in Content Studio?

This article explains recommended procedure for setting up and operating real-time data (RTD). Real-time data includes time, temperature, data from a text file, and in-game statistics. Common in-game stats come from an All Sport Console, DakStats, Data Studio, OmniSport Console, Stat Crew, Sports Wire, GameDay, StatVision, GSIS, IDS, NHL Ice, Hy-Tek and Finish Lynx. Anything requiring JSON feeds will need an updated Show Control to 2.18 or newer.

Environment

Product: Content Studio
Components: Data elements, ERTD feeds
Control System: Show Control System (SCS) version 2.17 and previous (Content Studio: How do I create presentations with data elements? ), Venus 1500 V4

This process can be watched here:

Reference Standard RTD Inputs Quick Guide, ED-17852 for the RTD configurations for DMP-8000 and DMP-7000 controllers.

Steps

Determine your data layout

Determine what displays will show real-time data and the type of information that is needed based upon the sources available.
It is helpful to create a background to visually aid design of the data frame.

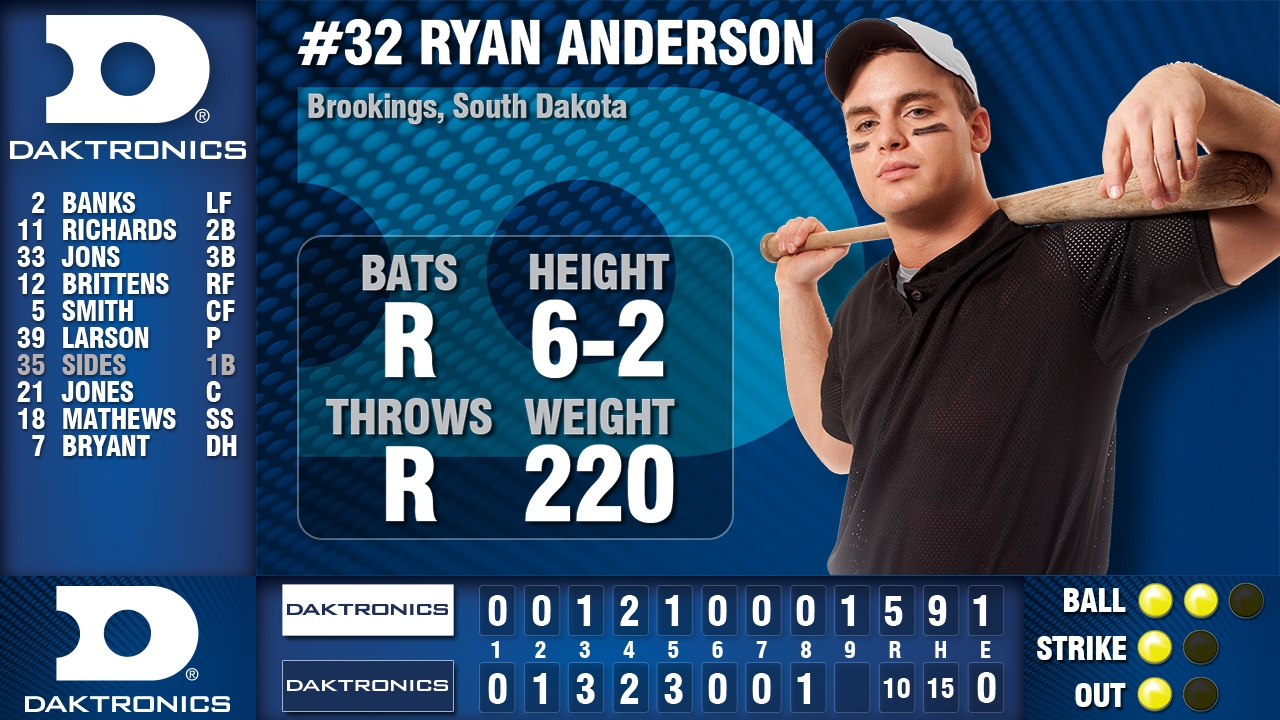

The above graphic was made in a separate image rendering program and imported into content studio. The data is shown in this example for design review purposes. It would be removed to allow the data elements to be imported in the Content Studio.
For help on importing graphics- See Content Studio: How do I import images or videos? , or YouTube- Getting Started With Graphics).
Layout Editor: How do I add zones and create looks?

Create a Presentation

Login to Content Studio. See: Show Control System: How do I Launch Content Studio for Show Control?
- Begin a new presentation in Content Studio, apply any desired formatting to the presentation's background. This may involve adding text or inserting a background image.

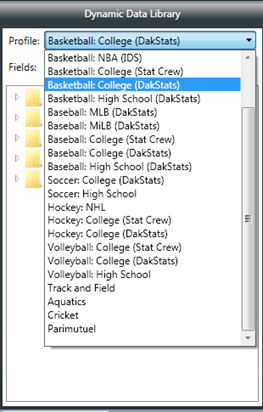

- Select your Sport Profile from the Dynamic Data Library located on the left-hand side of Content Studio.
  - If the Dynamic Data Library is not enabled, follow Content Studio: How do I enable Dynamic Data Library .

Expand the profile. Then, a list of the available RTD inputs will be visible.

- Game in Progress: Information received from AllSport can be found in the Game in Progress Source, including the game clock.
- Out-of-Town Scores: Detailed scores from other towns.
- Game Stats: Information from statistical programs managing game, season, and career statistics, such as DakStats, Stat Crew, and GSIS, is available.
- Requested Stats: Information on individual or team statistics is provided upon request.

To quickly search for data fields, type in the name of the desired field in the Fields box. Expand each RTD input to view the data options.

Import a RTD Field

Locate the field you want to insert as an RTD field, then drag and drop it into the presentation.

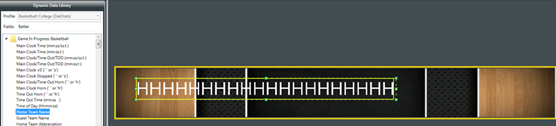

Data Elements will have a yellow outline on the layout. This is for editing purposes and will not be visible on your display.
Select the element to adjust the font, size, color, justification, etc.
To edit multiple elements, Hold the Ctrl key down and select additional elements.

Complete and Save the Presentation.

Drag and drop the remaining RTD fields you wish to use in your presentation, then format them appropriately.
Save the presentation.
