Milwaukee Bucks Bring Massive Daktronics LED Video System to Fiserv Forum



Featuring a 60-display LED digital canvas,
Fiserv Forum opened as the new home to
the Milwaukee Bucks in 2018.

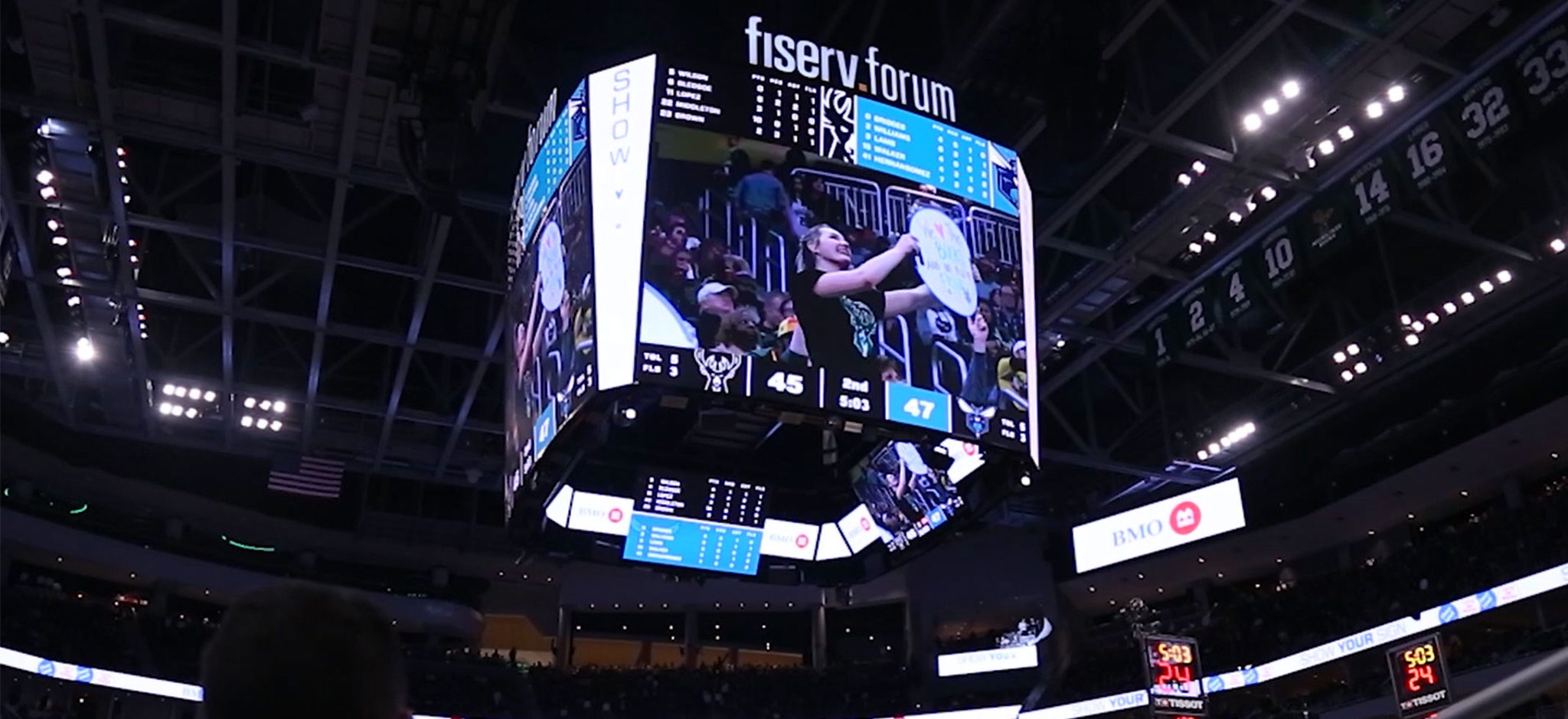

Highlighting the integrated system is the
largest equilateral centerhung display in the
NBA, which covers more than three-fourths
of the basketball court. Each of the four
main video displays on the 24-display
centerhung configuration measures 25
feet high by 29 feet wide.

What changed this whole relationship with us was customer service. They became a partner. They became integrated with everything we were thinking and doing.
Peter Feigin, Bucks President

Engineering

Where a Vision Meets Reality

With more than 500 engineers on staff, our team continues to innovate and develop the next wave of LED technology for our customers, including the Bucks, based on their specific applications. Our ability to effectively engineer displays like the new system at Fiserv Forum, is an important reason Daktronics is the leading provider of large integrated display systems for professional sports and entertainment facilities.

Custom Bucks Marquee

Custom Cabinet Designs

Implemented customized curved cabinet structures for uniquely-shaped displays in and around the arena.

Bucks Centerhung

Custom Module Shapes

Utilization of flexible quarter-modules to convert curved spaces for any video display application.

Bucks Concourse Display

Digital Inventory

Converting blank space around the arena into digital inventory with creative LED displays.

Bucks Freeform Dispaly

Freeform Elements

Installation of versatile exterior LED freeform stick product for unique design appearance and see-through application.

Manufacturing

With more than 600,000 square feet of manufacturing space, Daktronics can handle the largest video display projects in the industry. With component level assembly in the USA, Daktronics can ensure the highest quality available on the market today.

Our manufacturing capabilities were recognized with a Frost & Sullivan Manufacturing Leadership Award for Operational Excellence in 2017.

LEARN MORE ABOUT MANUFACTURING

With more than 600,000 square feet of manufacturing space, Daktronics can handle the largest video display projects in the industry. With component level assembly in the USA, Daktronics can ensure the highest quality available on the market today.

Our manufacturing capabilities were recognized with a Frost & Sullivan Manufacturing Leadership Award for Operational Excellence in 2017.

LEARN MORE ABOUT MANUFACTURING

With more than 600,000 square feet of manufacturing space, Daktronics can handle the largest video display projects in the industry. With component level assembly in the USA, Daktronics can ensure the highest quality available on the market today.

Our manufacturing capabilities were recognized with a Frost & Sullivan Manufacturing Leadership Award for Operational Excellence in 2017.

LEARN MORE ABOUT MANUFACTURING

With more than 600,000 square feet of manufacturing space, Daktronics can handle the largest video display projects in the industry. With component level assembly in the USA, Daktronics can ensure the highest quality available on the market today.

Our manufacturing capabilities were recognized with a Frost & Sullivan Manufacturing Leadership Award for Operational Excellence in 2017.

LEARN MORE ABOUT MANUFACTURING

cabinets in manufacturing plant

With more than 600,000 square feet of manufacturing space, Daktronics can handle the largest video display projects in the industry. With component level assembly in the USA, Daktronics can ensure the highest quality available on the market today.

Our manufacturing capabilities were recognized with a Frost & Sullivan Manufacturing Leadership Award for Operational Excellence in 2017.

LEARN MORE ABOUT MANUFACTURING

workers preparing display for shipping

With more than 600,000 square feet of manufacturing space, Daktronics can handle the largest video display projects in the industry. With component level assembly in the USA, Daktronics can ensure the highest quality available on the market today.

Our manufacturing capabilities were recognized with a Frost & Sullivan Manufacturing Leadership Award for Operational Excellence in 2017.

LEARN MORE ABOUT MANUFACTURING

Installation

Buckc Centerhung

Piecing it Together

New arena projects have a lot of moving
parts and multiple parties on site with
differing schedules, timelines and
milestones.

A company with more than 800 combined
years in project management has the
experience to work through the construction
schedule at Fiserv Forum to bring an LED
video solution to life on time and on budget.
We know every moment matters.

Game Day

Achieving Your Final Goal

Game day at Fiserv Forum features 60 individual LED displays and over 14,000 square feet of
LED. Fans at the arena will be informed and entertained by displays in-bowl and out-of-bowl.

Arena Diagram

Explore the Integrated System

Fiserv Forum | Milwaukee Bucks

Click the pins on the image to see more information about each display.

Centerhung Display

Centerhung Display

Spacing: 6 mm (Quantity: 4)
Dimensions: 24'11" x 29'1"
(7.6 m x 8.87 m)

6 mm (4)
24'11" x 5'6"
(7.6 m x 1.66 m)

4 mm (4)
8'4" x 12'6"
(2.54 m x 3.8 m)

4 mm (8)
3'1" x 5'2"
(.95 m x 1.59 m)

4 mm (4)
3'1" x 3'5"
(.95 m x 1.03 m)

Scorer's Tables

Scorer's Tables

Spacing: 4 mm
Dimensions: 2'1" x 7'3" (.63 m x 2.22 m)
Quantity: 3

Spacing: 4 mm
Dimensions: 2'1" x 9'4" (.63 m x 2.85 m)
Quantity: 2

Stanchion Display

Stanchion Display

Spacing: 6 mm
Dimensions: 1'6" x 4'5" (.45 m x 1.35 m)
Quantity: 4

Interview Room

Interview Room

Spacing: 1.9 mm
Dimensions: 6'9" x 12' (2.05 m x 3.65 m)

Floor Vomitory

Floor Vomitory

Spacing: 10 mm
Dimensions: 2'6" x 11'6" (.75 m x 3.5 m)
Quantity: 4

East Suite Ribbon Display

East Suite Ribbon

Spacing: 15 mm
Dimensions: 2'6" x 266'5" (.75 m x 69 m)

Tower Suite Ribbon Display

Tower Suite Ribbon

Spacing: 15 mm
Dimensions: 4'2" x 20'10" (1.27 m x 6.34 m)
Quantity: 2

Corner Video Display

Corner Video

Spacing: 15 mm
Dimensions: 9'4" x 35'4" (2.85 m x 10.78 m)
Quantity: 4

Upper Level Ribbon Display

Upper Level Ribbon

Spacing: 15 mm
Dimensions: 2'6" x 966'3" (.75 m x 294.5 m)

Club Vomitory Display

Club Vomitory

Spacing: 10 mm
Dimensions: 2'6" x 4'11" (.75 m x 1.5 m)
Quantity: 4

Team Store Display

Retail/Team Store

Spacing: 4 mm
Dimensions: 9'4" x 14'7" (2.85 m x 4.44 m)

Lobby Display

Lobby

Spacing: 4 mm
Dimensions: 11'5" x 43'8" (3.49 m x 13.31 m)

Beer Garden Display

Beer Garden

Spacing: 6 mm
Dimensions: 17'4" x 30'6" (5.28 m x 9.29 m)

Supershaft

Supershaft

Spacing: 6 mm
Dimensions: 24'11" x 21'10" (7.6 m x 6.65 m)

Player Entry Tunnel

Player Entry Tunnel

Spacing: 4 mm
Dimensions: 9'4" x 9'4" (2.85 m x 2.85 m)

Parking Garage East Ribbon Display

Parking Garage East Ribbons

Spacing: 13HD
Dimensions: 3'7" x 39'7" (1.1 m x 12.07 m)

Spacing: 13HD
Dimensions: 3'7" x 26'5" (1.1 m x 8.04 m)

Parking Garage North Ribbon

Parking Garage North Ribbon

Spacing: 13HD
Dimensions: 4'10" x 39'7" (1.46 m x 12.07 m)

Parking Garage North Marquee

Parking Garage Marquee

Spacing: 13HD
Dimensions: 39'7" x 37'2" (12.07 m x 11.34 m)

Northwest Entry Display

Northwest Entry

Spacing: 25 mm
Dimensions: 15' x 87'3" (4.85 m x 26.6 m)

Mecca Bar

Mecca Bar

Spacing: 4 mm video display
Dimensions: 17'8" x 31'2"
(5.39 m x 9.51 m)

Spacing: 4 mm ribbon display
Dimensions: 2'1" x 47'10"
(.63 m x 14.58 m)

Spacing: 4 mm ribbon display
Dimensions: 2'1" x 40'7"
(.63 m x 13.36 m)

Spacing: 4 mm ribbon display
Dimensions: 2'1" x 34'4"
(.63 m x 10.46 m)

Industry-leading Control System

Integrating every display at Fiserv Forum, Daktronics powerful Show
Control System runs the show. This industry-leading system provides
a combination of display control software, world-class video processing,
data integration and playback hardware that forms a user-friendly
production solution.

Learn More About Control

Bucks Control Room

Support

Sustaining Your Investment

Throughout the years and each installation process, Daktronics performance and reliable service staff has supported the Bucks and their needs. After installation, our team remains committed to providing you with the best service in the industry. This includes experienced, reliable local service technicians available to support the installation 24/7. We provide one number to call if there are any issues that need to be resolved and will be there for your team throughout the lifetime of your display system.

LEARN MORE ABOUT OUR SERVICE

We're excited to continue this long-standing partnership with the Milwaukee Bucks since the mid-1990s. It's great to be able to once again provide them with cutting-edge technology as they move to a new venue.
Tony Mulder, Daktronics
