eCCB display is blank, no boot up or heartbeat; Failed controller

Potential Symptoms

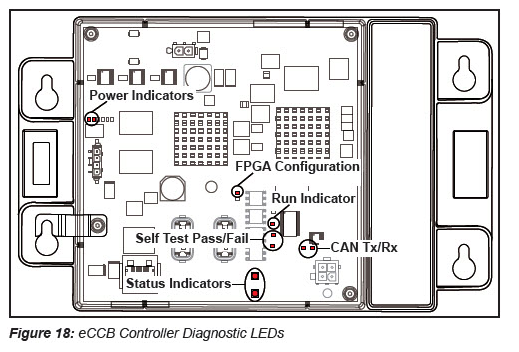

  • Display is blank and unable to connect to it, but Power LED is lit on the controller.
  • There is no boot up when power is cycled and no heartbeat.
  • The Run Indicator is not lit on the display controller.
  • CAN Tx/Rx are not lit on the controller.


Environment

  • Product: eCCB (Electronic Changeable Copy Board)
  • Component: Havana Controller
  • Control System:

Cause

  • Failed controller.

Resolution

  • Replace controller.

KB ID: DD3911836
