How do I change IP settings on a VC6 or VS6?

Topic

  • How do I change the IP settings on a VC6 or VS6 display?
  • How do I log into the VIP to change IP settings?

Environment

  • Product Family: Transportation
  • Product: VC6, VS6
  • Components: Daktronics Remote Display Configuration (DRDC), VIP-5060, VIP-5050, DMP-5050, DMP-5060
  • Control System: Vanguard Software

Steps


CAUTION: The steps outlined below, if performed incorrectly, may result in equipment failure. Do not attempt these steps without proper training and understanding of product operation. Consult a Daktronics technical support technician if you need assistance.

  1. Log into the Daktronics Remote Display Configuration for the VIP.  See How to Access the Daktronics Remote Display Configuration utility for the GS6 Display, DD3339916 for details.
  2. Change the IP settings.
    • Note: The process to change IP information will look one of two ways depending on firmware version in use.

New Interface

  1. Click the Network tile on the dashboard.
    network tile.jpg

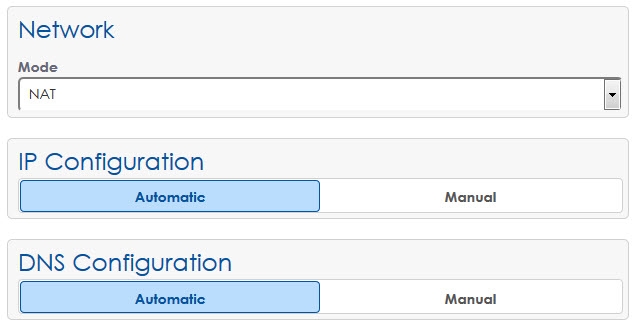

  2. Under IP configuration select Automatic to have the display obtain IP and DNS settings automatically through DHCP or select Manual to enter static IP and DNS information.
    network set.jpg
    1. Note: mode should be left on NAT
  3. Select Save in the upper left when finished.




KB ID: DD3759570
