What do the lights mean on a DMP-8050 or DMP-8065.2?

Topic

  • What do the lights mean on a DMP-8050 or DMP-8065.2?

Environment

  • Product Family: Message Displays
  • Product: GS6
  • Component: DMP-5050, DMP-8050, DMP-8065.2
  • Control System:

Steps

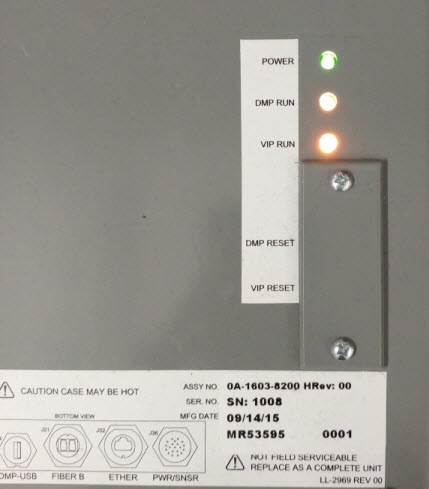

  • Power (Green, lit solid) - this indicates the DMP is being powered.
  • DMP Run (Amber, flashing once per second - DMP's heartbeat) - this indicates that the DMP-8000 software and processes have booted and are running on the DMP-8000 computer.
  • VIP Run (Amber, flashing once per second - VIP's heartbeat) - this indicates that the VIP has booted up and is running.


KB ID: DD3488767
