Shot Clock: How do I find mounting brackets or how to obtain backboard mounting hardware?
Topic
- Where are the mounting brackets for my new Shot Clock?
- Do Shot Clocks come with any mounting brackets?
Environment
- Product: Shot Clocks
- Component: Mounting Hardware
- Control System: All Sport Console
Daktronics does not supply the mounting hardware or brackets. Mounting hardware is supplied by the customer because the brackets and bolts differ depending on the equipment it is being mounted to. In some cases the manufacturer of the backboard may offer mounting hardware but the backboard vendor will need to be contacted for this information.
Steps
The drawings below show examples of shot clock mounting methods. The highlighted areas in the drawings below are customer provided mounting equipment.

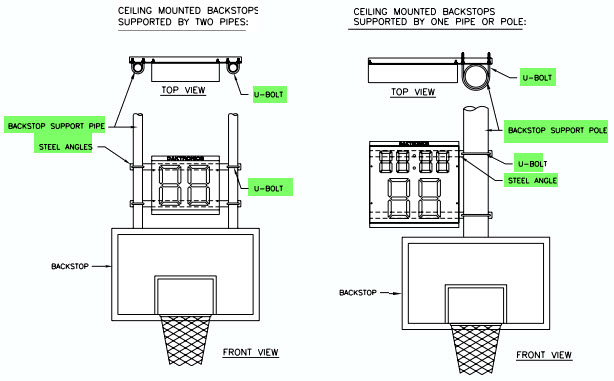

Hardware for Backstop Mounted Shot Clocks: Two Poles or One Pole
Here are some examples of what the equipment will look like: (Use steel angles for ceiling mounted backstops.)
The shot clock has predrilled holes in the back that can be attached to the customer provided steel angles.

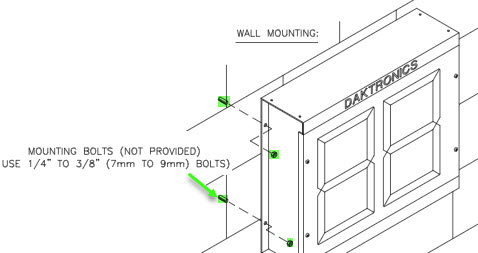

Hardware for Wall Mounted Shot Clocks:
The product specifications of the specific shot clock model in contains additional installation information. Product specifications can be found at http://www.daktronics.com/en-us/products/sports/basketball.
KB ID: DD2116088
