How do I reset an Axis Video Server to factory default settings?

Potential Symptoms

How do I reset an Axis Video Server to factory default settings?



Environment

  • Product Family:  Billboards
  • Product: Axis 240Q video server
  • Components:
  • Control System:

Resolution

Answer / Steps

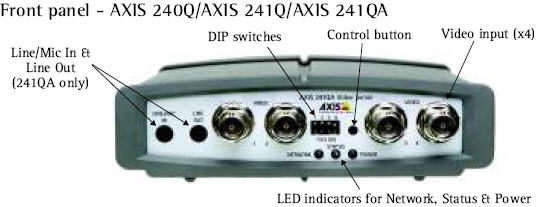

  1. Turn off the Axis Video Server by disconnecting the power.
  2. Press and hold the control button while reconnecting the power.
  3. Keep the control button pressed until the "Status Indicator" displays yellow.
    • This may take up to 15 seconds.
  4. Release the control button.
  5. When the "Status Indicator" changes to green, the Axis Video Server will be at default settings. This may take up to 1 minute.
