Daktronics

All Sport Pro: How do I use Football - Practice Mode

Topic

  • Segment practice timer

Environment

  • Product: All Sport Pro suite 21.8.622, All Sport Pro Football component 1.6.41
  • Component: All Sport Pro
  • Control System: Show Control System (SCS)

Steps

Note:
The segment number will populate in the Period field

  • ERTD - (Content with data elements from Content Studio) The segment number is (142-143) and the segment name is (148-159) in ERTD for video displays.
  • Scoreboard output - 2 digit mode is needed when using more than 9 segments during practice
    • This feature is only supported by a custom football or soccer scoreboards which include a second digit for QTR.  Without the second digit, only the 10’s information would is displayed (ex. blank for segment 3, “2” for segment 13, etc.)
Rules
Scoreboard - The preconfigured option is the “Two Digit Periods (practice mode)” for scoreboard model and then create games/practices with that rule set. The option to change the period segment is under advanced.

The default number of practice intervals and timing can be adjusted. Normally the number of segments would be 4.image.png

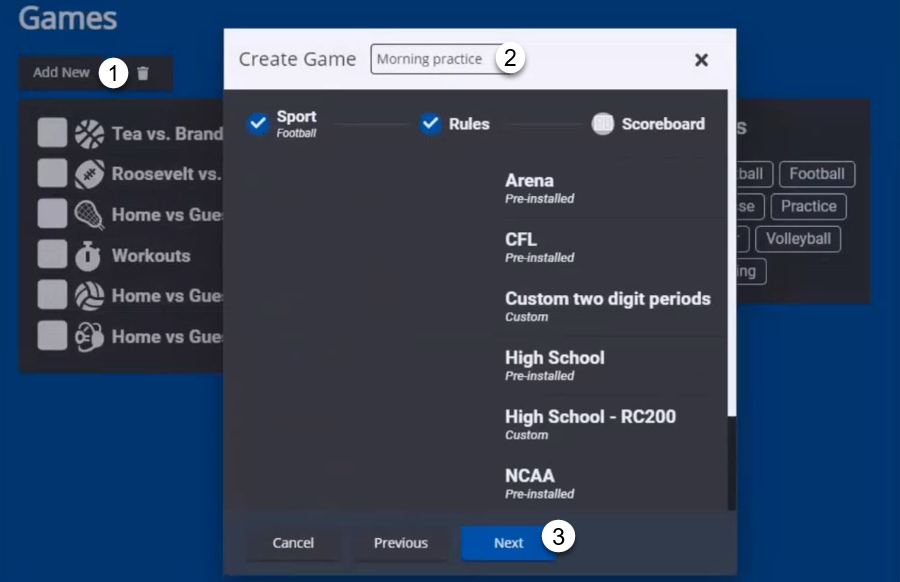

Add a game/ practice session.
How do I create games in All Sport Pro?


Open the Practice Session

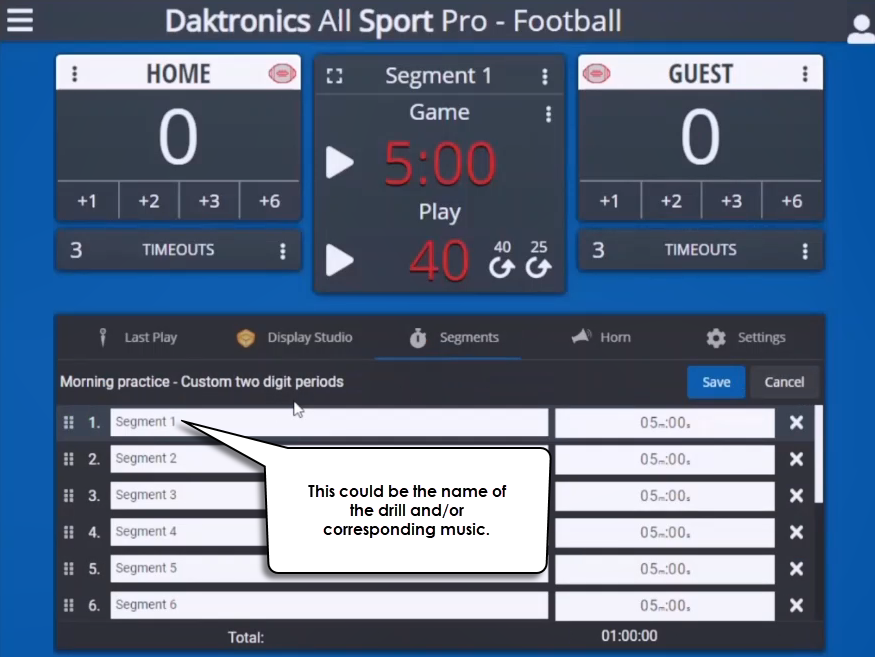

On the segment tab, customize the segment names and time for each.  (12 Character limit)
Run Practice
Press the play button to start going through the segments.
Use the segment menu to navigate ahead or back to other segments if needed.


KB ID: 000024692
