Adflow DMS: What is a Zone in DMS Player?

Topic

What is a "Zone" in a DMS Player?

Environment

  • Product: DMS (Adflow) Player
  • Components: DMS Player Software versions 10.0+
  • Control System: Adflow DMS

Steps

 A "Zone" in DMS player is a segmented section of the screen.  Mainly used to provide a dedicated section of the display to "special content" such as Weather or a news ticker.

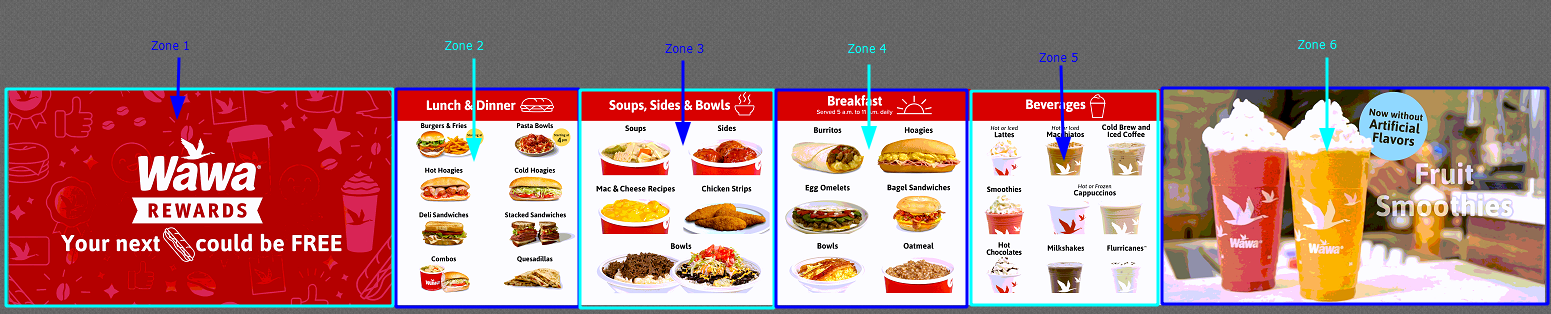

Full Screen Zones are also common in many applications.  Below is an example of a 1X4 Menu board (7680px1080p) where the 4x 1920x1080 physical screens are broken up into 6 zones.
An important note.  Zones are configured locally on the DMS player itself.

KB ID: 000024022
