How do I configure network settings on an LG Display?

Topic

  • How do I configure network settings on an LG Display?

Environment

  • Product Family: Software and Controllers
  • Product: DWP
  • Components: LG Display
  • Control System: Venus Control Suite

Steps

Check Network Settings
  1. Press the Home button on the remote.
    • lg remote home.jpg

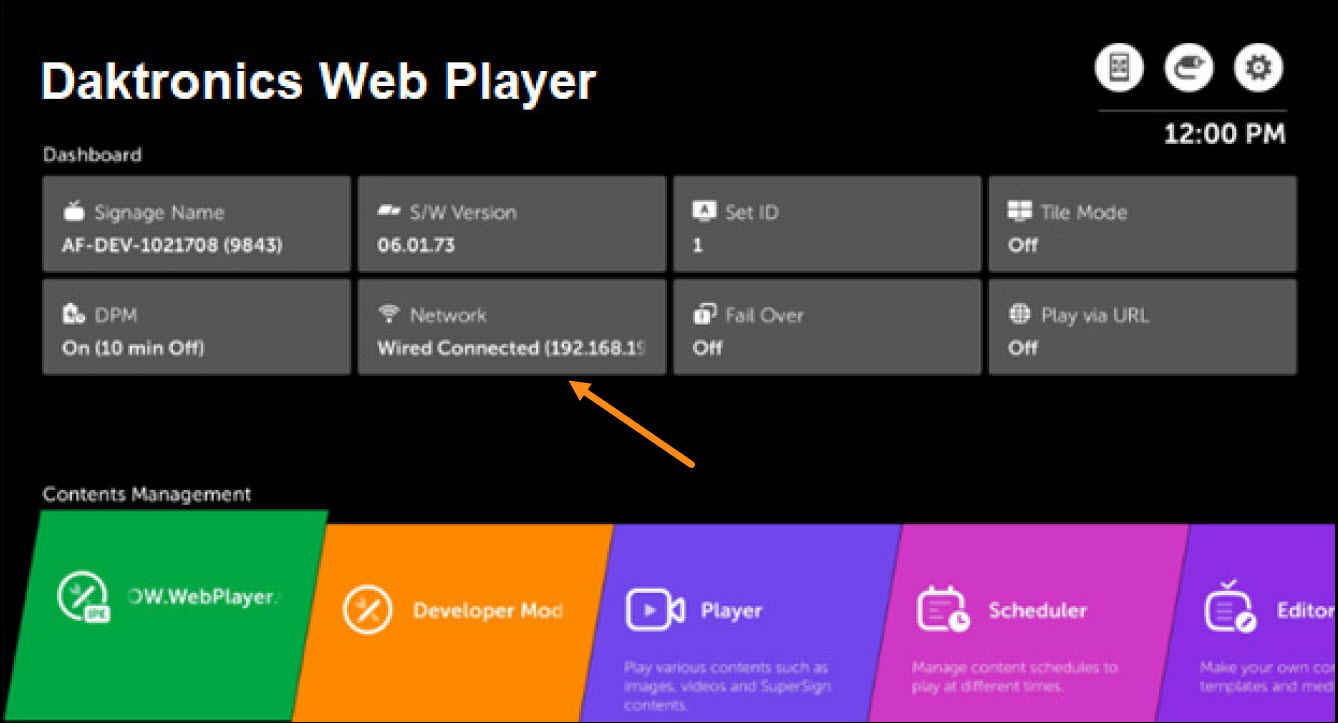

  2. Select the network option from the menu that appears and push OK.
    • dwp network.jpg

Configure Network Settings
  1. Push the Settings button on the remote.
    • lg remote settings.jpg
  2. Select General from the left-side menu.
    • general settings.jpg
  3. Select Network.
    • lg network.jpg
  4. Select either the Wired or Wi-Fi connection to see current settings or modify them.
    • lg network menu.jpg

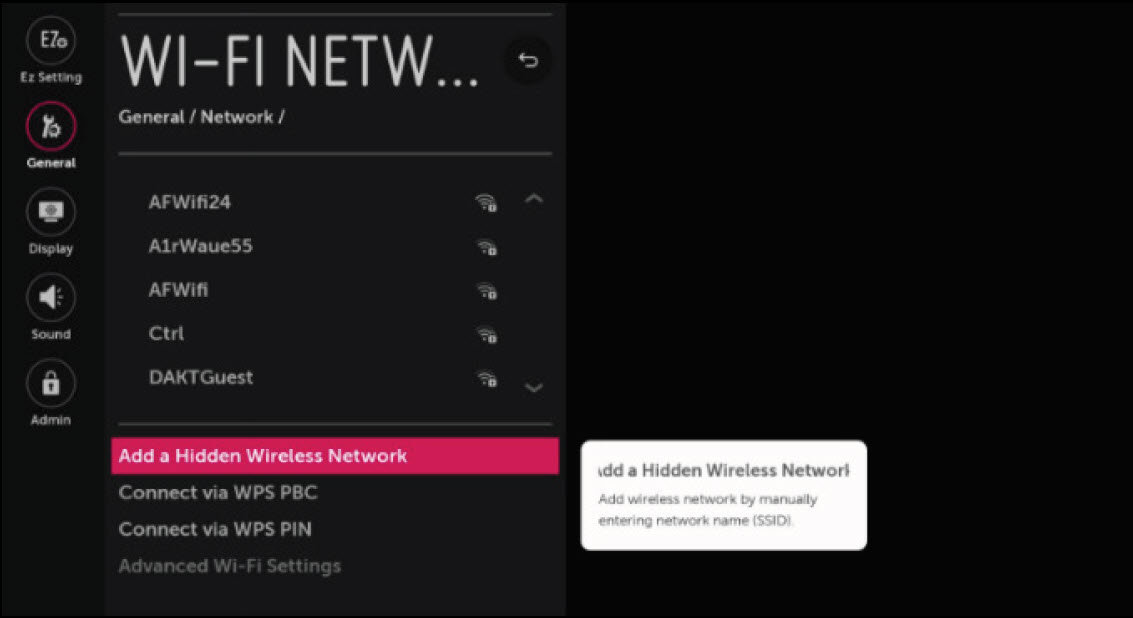

    • WiFi Menu Example - this would allow you to choose which WiFi network you are connecting to
      • wifi menu.jpg

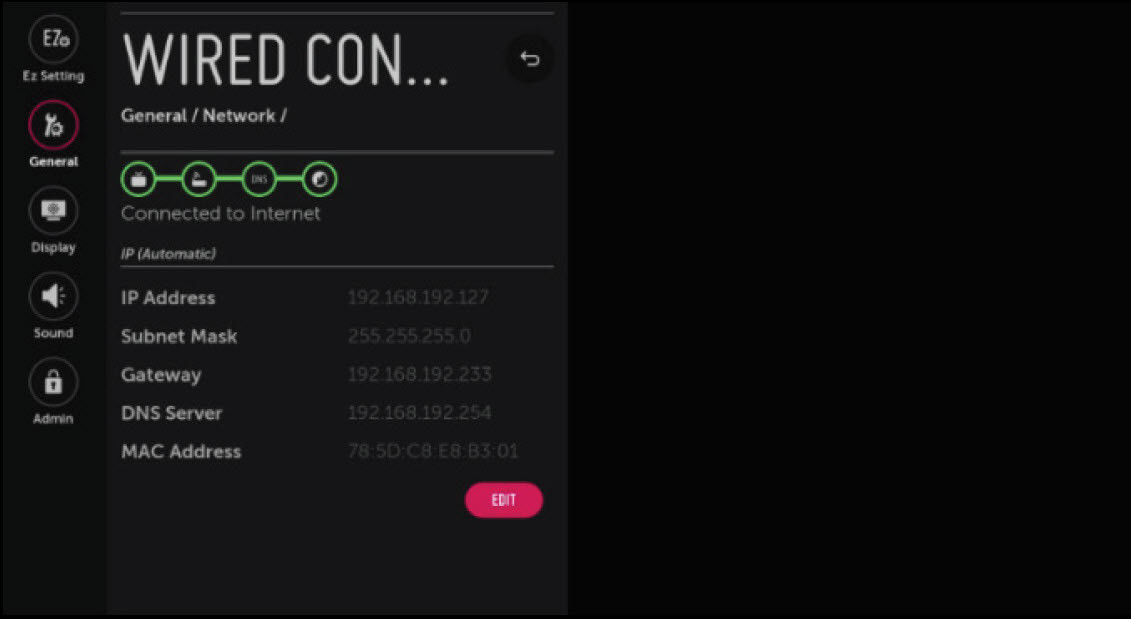

    • Wired Menu Example - this would allow you to change the IP settings on the wired connection
      • wired menu.jpg


KB ID: 000020772
