Home and Guest stat panels are blank, Mass Sub not performed

Potential Symptoms

  • Home and Guest stat panels are blank but go though start up self test when All Sport console is turned off.
  • Stat panels are blank, not showing players.
  • Nothing coming up on stat panels.
  • Stat panels light with All-On Test but not during an actual game

Environment

  • Product: Scoreboard
  • Component: Stat Panel
  • Control System: All Sport 5000

Cause

  • Players haven't been added into the All Sport 5000 console.

Resolution

  • Perform a Mass Sub for the Home side and add each individual player.
  • Perform a Mass Sub for the Guest side and add each individual player.

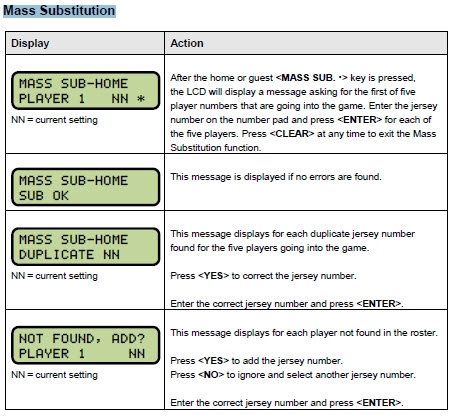

All Sport 5k mass sub.jpg

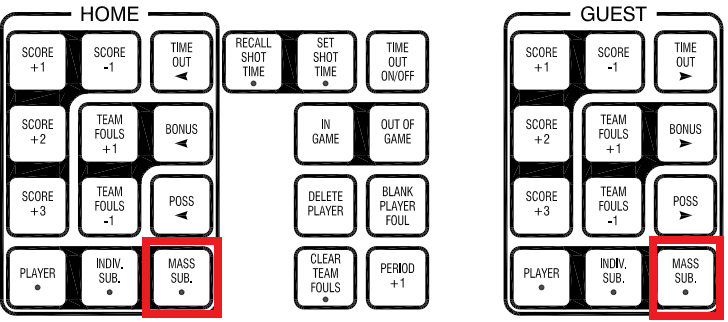

AS-5000 - Basketball - Mass Sub.png


The above images were taken from the Basketball Operation section of the All Sport 5000 Series Control Console Operation Manual, ED-11976.

KB ID: DD2162096
