Milwaukee Bucks Bring Massive Daktronics LED Video System to Fiserv Forum
Featuring a 60-display LED digital canvas,
Fiserv Forum opened as the new home to
the Milwaukee Bucks in 2018.
Highlighting the integrated system is the
largest equilateral centerhung display in the
NBA, which covers more than three-fourths
of the basketball court. Each of the four
main video displays on the 24-display
centerhung configuration measures 25
feet high by 29 feet wide.
What changed this whole relationship with us was customer service. They became a partner. They became integrated with everything we were thinking and doing.
Where a Vision Meets Reality
With more than 500 engineers on staff, our team continues to innovate and develop the next wave of LED technology for our customers, including the Bucks, based on their specific applications. Our ability to effectively engineer displays like the new system at Fiserv Forum, is an important reason Daktronics is the leading provider of large integrated display systems for professional sports and entertainment facilities.
Custom Cabinet Designs
Implemented customized curved cabinet structures for uniquely-shaped displays in and around the arena.
Custom Module Shapes
Utilization of flexible quarter-modules to convert curved spaces for any video display application.
Digital Inventory
Converting blank space around the arena into digital inventory with creative LED displays.
Freeform Elements
Installation of versatile exterior LED freeform stick product for unique design appearance and see-through application.
![](https://daktronics-www.azureedge.net/jwbhxogr/manufacturing-cabinet.jpg?width=930&v=1d6bec180fd7c70)
With more than 600,000 square feet of manufacturing space, Daktronics can handle the largest video display projects in the industry. With component level assembly in the USA, Daktronics can ensure the highest quality available on the market today.
Our manufacturing capabilities were recognized with a Frost & Sullivan Manufacturing Leadership Award for Operational Excellence in 2017.
![](https://daktronics-www.azureedge.net/5c4aktys/manufacturing-panel.jpg?width=930&v=1d6bec2eb1604f0)
With more than 600,000 square feet of manufacturing space, Daktronics can handle the largest video display projects in the industry. With component level assembly in the USA, Daktronics can ensure the highest quality available on the market today.
Our manufacturing capabilities were recognized with a Frost & Sullivan Manufacturing Leadership Award for Operational Excellence in 2017.
![](https://daktronics-www.azureedge.net/aaqdg3mh/manufacturing-assembly.jpg?width=930&v=1d6bec31d5ef1b0)
With more than 600,000 square feet of manufacturing space, Daktronics can handle the largest video display projects in the industry. With component level assembly in the USA, Daktronics can ensure the highest quality available on the market today.
Our manufacturing capabilities were recognized with a Frost & Sullivan Manufacturing Leadership Award for Operational Excellence in 2017.
![](https://daktronics-www.azureedge.net/0imegnvl/manufacturing-final-assembly.jpg?width=930&v=1d6bec37c5c4410)
With more than 600,000 square feet of manufacturing space, Daktronics can handle the largest video display projects in the industry. With component level assembly in the USA, Daktronics can ensure the highest quality available on the market today.
Our manufacturing capabilities were recognized with a Frost & Sullivan Manufacturing Leadership Award for Operational Excellence in 2017.
![cabinets in manufacturing plant](https://daktronics-www.azureedge.net/pk3jqztq/manufacturing-cabinets.jpg?width=930&v=1d8a5feaa5b0e40)
With more than 600,000 square feet of manufacturing space, Daktronics can handle the largest video display projects in the industry. With component level assembly in the USA, Daktronics can ensure the highest quality available on the market today.
Our manufacturing capabilities were recognized with a Frost & Sullivan Manufacturing Leadership Award for Operational Excellence in 2017.
![workers preparing display for shipping](https://daktronics-www.azureedge.net/bulp4b5n/manufacturing-shipping.jpg?width=930&v=1d8a5feb156ed90)
With more than 600,000 square feet of manufacturing space, Daktronics can handle the largest video display projects in the industry. With component level assembly in the USA, Daktronics can ensure the highest quality available on the market today.
Our manufacturing capabilities were recognized with a Frost & Sullivan Manufacturing Leadership Award for Operational Excellence in 2017.
Piecing it Together
New arena projects have a lot of moving
parts and multiple parties on site with
differing schedules, timelines and
milestones.
A company with more than 800 combined
years in project management has the
experience to work through the construction
schedule at Fiserv Forum to bring an LED
video solution to life on time and on budget.
We know every moment matters.
Achieving Your Final Goal
Game day at Fiserv Forum features 60 individual LED displays and over 14,000 square feet of
LED. Fans at the arena will be informed and entertained by displays in-bowl and out-of-bowl.

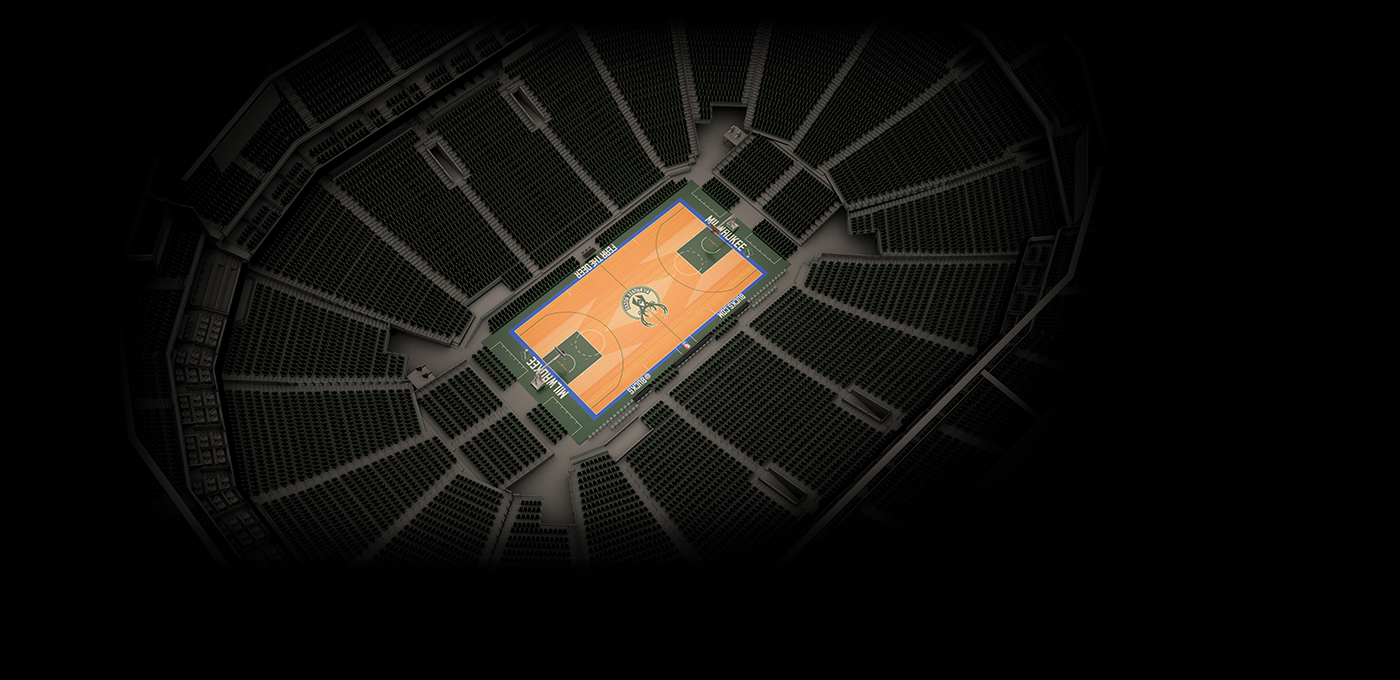

![Arena Diagram](/media/bhrcq4fm/arena-diagram.png)
Explore the Integrated System
Fiserv Forum | Milwaukee Bucks
Click the pins on the image to see more information about each display.
Centerhung Display
![Centerhung Display](/media/kxrog02f/integrated-systems_centerhung.jpg)
Spacing: 6 mm (Quantity: 4)
Dimensions: 24'11" x 29'1"
(7.6 m x 8.87 m)
6 mm (4)
24'11" x 5'6"
(7.6 m x 1.66 m)
4 mm (4)
8'4" x 12'6"
(2.54 m x 3.8 m)
4 mm (8)
3'1" x 5'2"
(.95 m x 1.59 m)
4 mm (4)
3'1" x 3'5"
(.95 m x 1.03 m)
![Scorer's Tables](/media/vnfbnism/integrated-systems_scorers-tables.jpg)

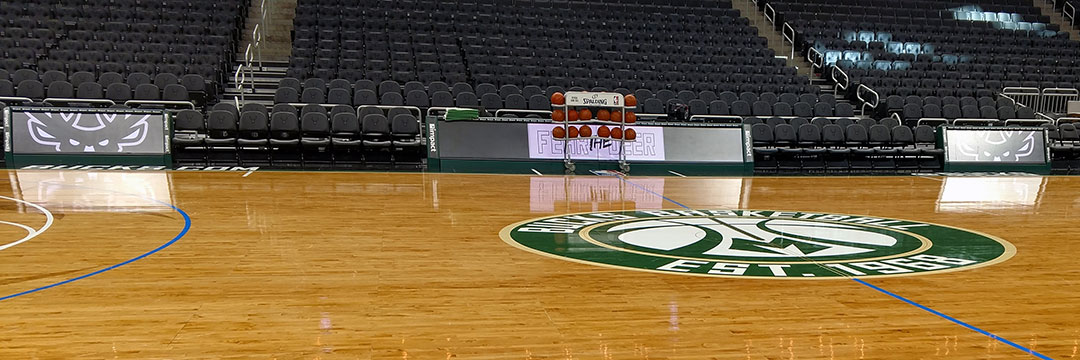

Scorer's Tables
Spacing: 4 mm
Dimensions: 2'1" x 7'3" (.63 m x 2.22 m)
Quantity: 3
Spacing: 4 mm
Dimensions: 2'1" x 9'4" (.63 m x 2.85 m)
Quantity: 2

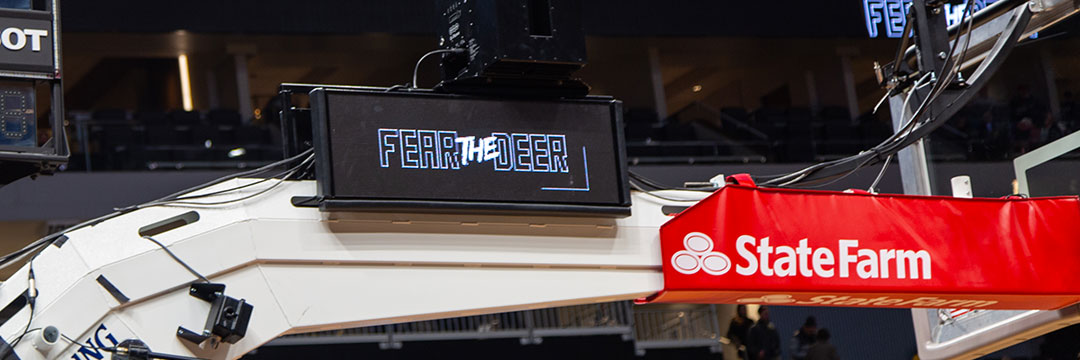

![Stanchion Display](/media/415f3wus/integrated-systems_stanchion.jpg)
Stanchion Display
Spacing: 6 mm
Dimensions: 1'6" x 4'5" (.45 m x 1.35 m)
Quantity: 4

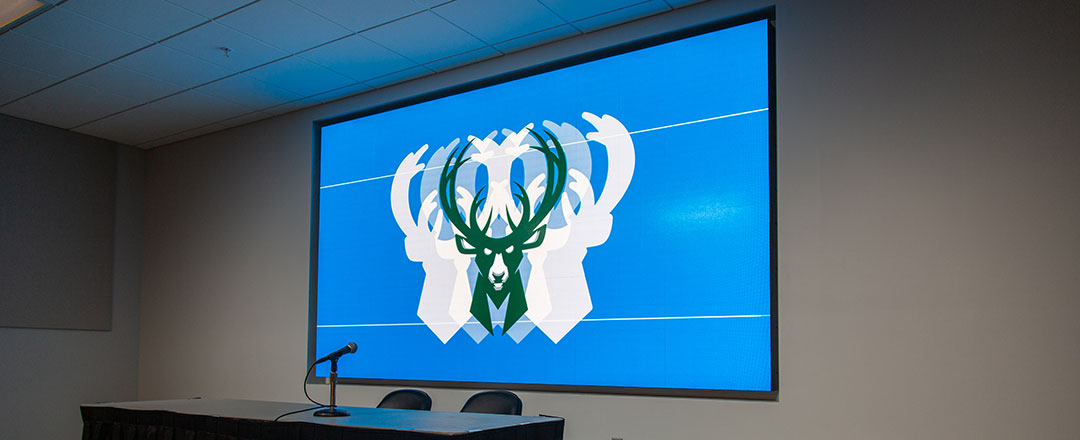

![Interview Room](/media/c0ojemdc/integrated-systems_interview-room.jpg)
Interview Room
Spacing: 1.9 mm
Dimensions: 6'9" x 12' (2.05 m x 3.65 m)

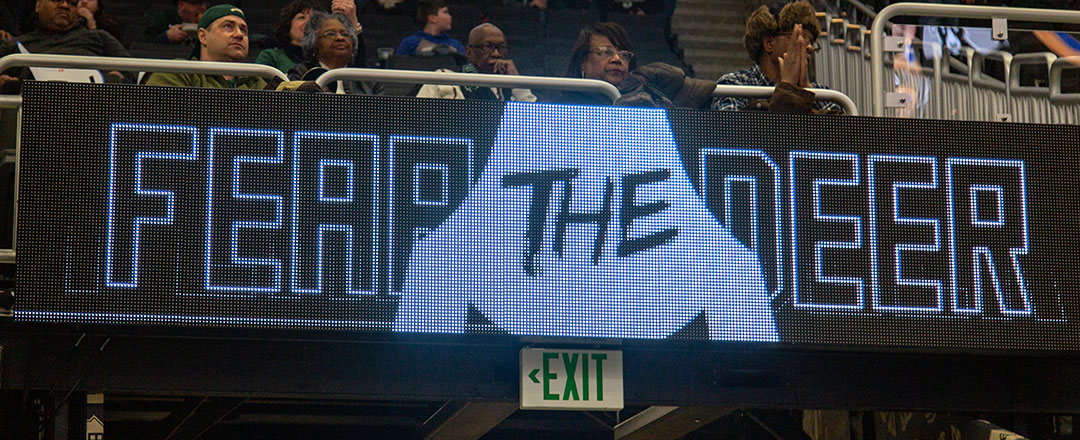

![Floor Vomitory](/media/3kdpufia/integrated-systems_floor-vomitory.jpg)
Floor Vomitory
Spacing: 10 mm
Dimensions: 2'6" x 11'6" (.75 m x 3.5 m)
Quantity: 4
![East Suite Ribbon Display](/media/dl0nwybf/integrated-systems_ribbon-displays.jpg)
East Suite Ribbon
Spacing: 15 mm
Dimensions: 2'6" x 266'5" (.75 m x 69 m)
![Tower Suite Ribbon Display](/media/n3rlkd0w/integrated-systems_tower-suite-ribbon.jpg)

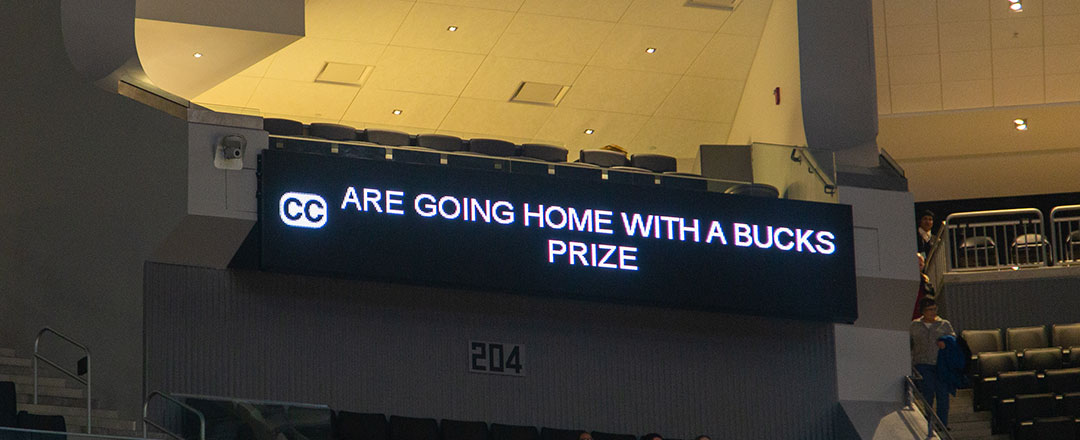

Tower Suite Ribbon
Spacing: 15 mm
Dimensions: 4'2" x 20'10" (1.27 m x 6.34 m)
Quantity: 2
![Corner Video Display](/media/iv4oe3rs/integrated-systems_corner-video.jpg)

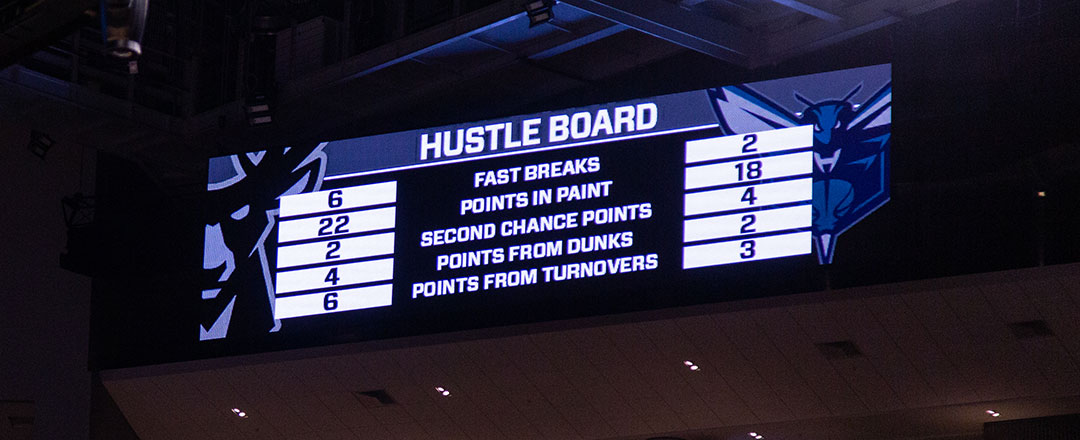

Corner Video
Spacing: 15 mm
Dimensions: 9'4" x 35'4" (2.85 m x 10.78 m)
Quantity: 4
![Upper Level Ribbon Display](/media/dl0nwybf/integrated-systems_ribbon-displays.jpg)

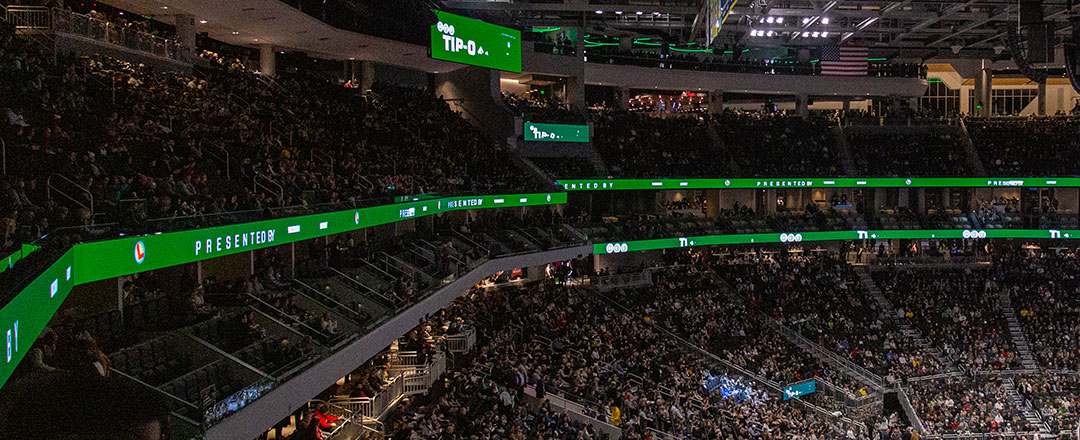

Upper Level Ribbon
Spacing: 15 mm
Dimensions: 2'6" x 966'3" (.75 m x 294.5 m)
![Club Vomitory Display](/media/reeec4kp/integrated-systems_club-vomitory.jpg)

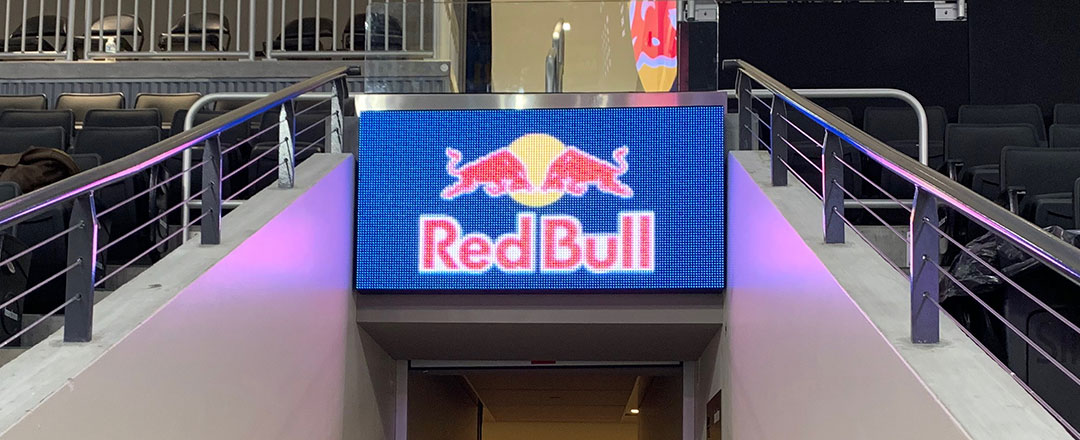

Club Vomitory
Spacing: 10 mm
Dimensions: 2'6" x 4'11" (.75 m x 1.5 m)
Quantity: 4

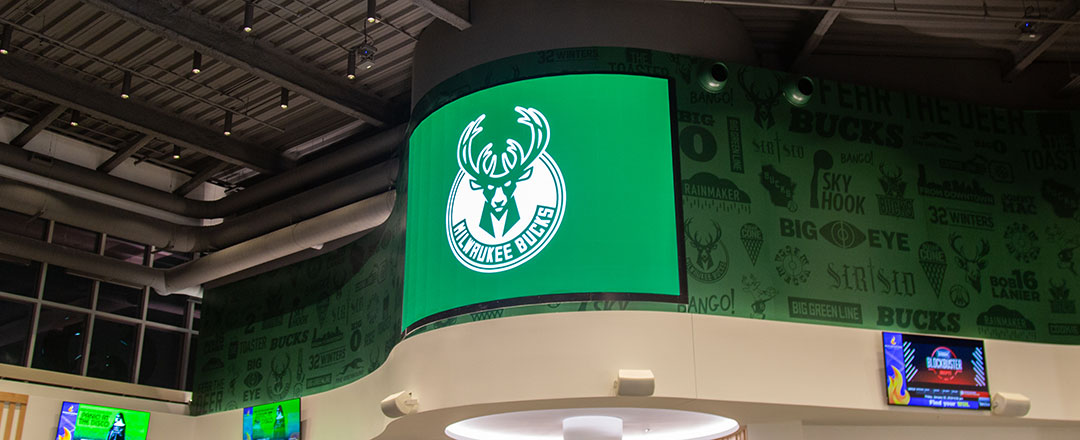

![Team Store Display](/media/oi1nxtto/integrated-systems_team-store.jpg)
Retail/Team Store
Spacing: 4 mm
Dimensions: 9'4" x 14'7" (2.85 m x 4.44 m)
![Lobby Display](/media/l1rnodab/integrated-systems_lobby-display.jpg)

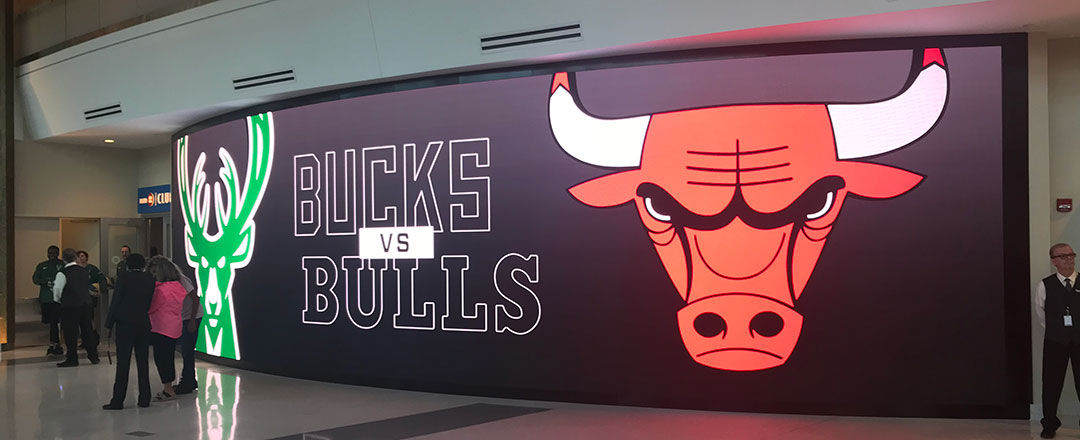

Lobby
Spacing: 4 mm
Dimensions: 11'5" x 43'8" (3.49 m x 13.31 m)

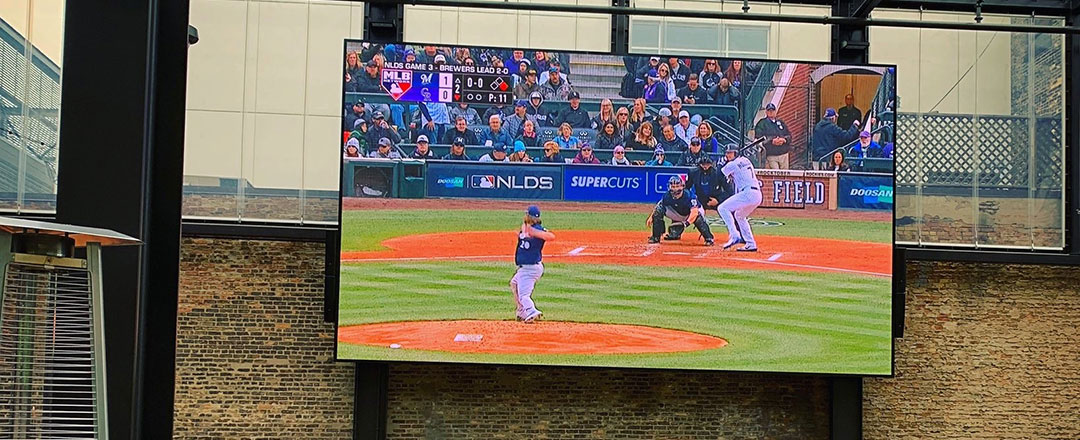

![Beer Garden Display](/media/3n5b4hpj/integrated-systems_beer-garden.jpg)
Beer Garden
Spacing: 6 mm
Dimensions: 17'4" x 30'6" (5.28 m x 9.29 m)
![Supershaft](/media/pthlxoni/integrated-systems_supershaft.jpg)

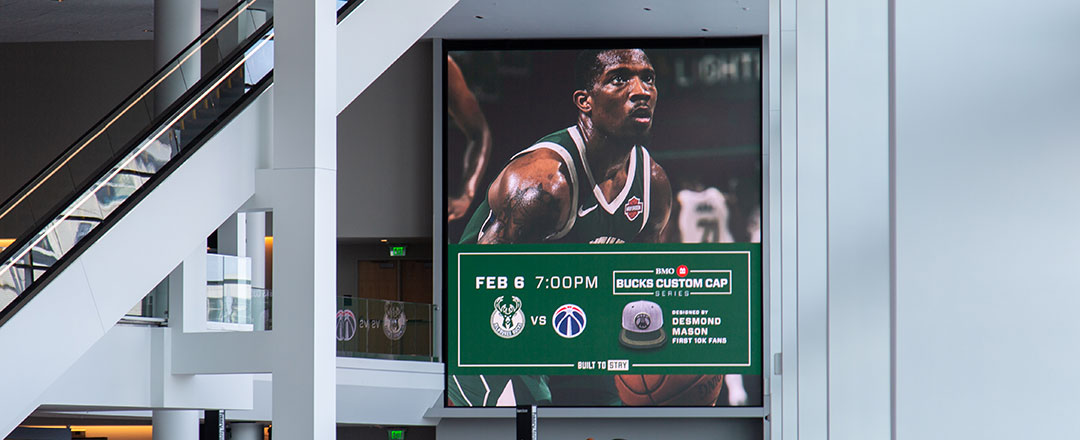

Supershaft
Spacing: 6 mm
Dimensions: 24'11" x 21'10" (7.6 m x 6.65 m)

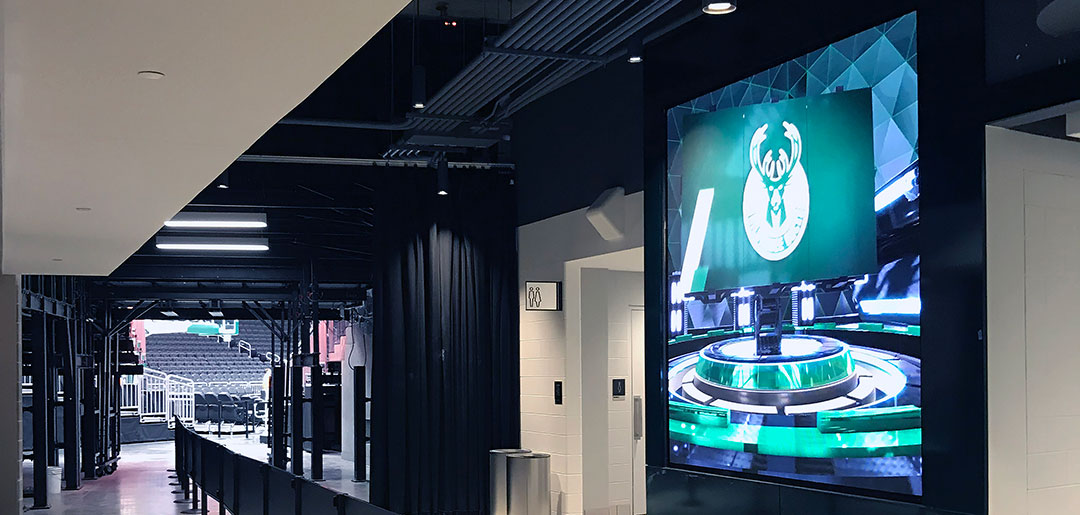

![Player Entry Tunnel](/media/30vbpo0t/integrated-systems_player-entry-tunnel.jpg)
Player Entry Tunnel
Spacing: 4 mm
Dimensions: 9'4" x 9'4" (2.85 m x 2.85 m)
![Parking Garage East Ribbon Display](/media/cvfhpdoe/integrated-systems_parking-garage-east.jpg)

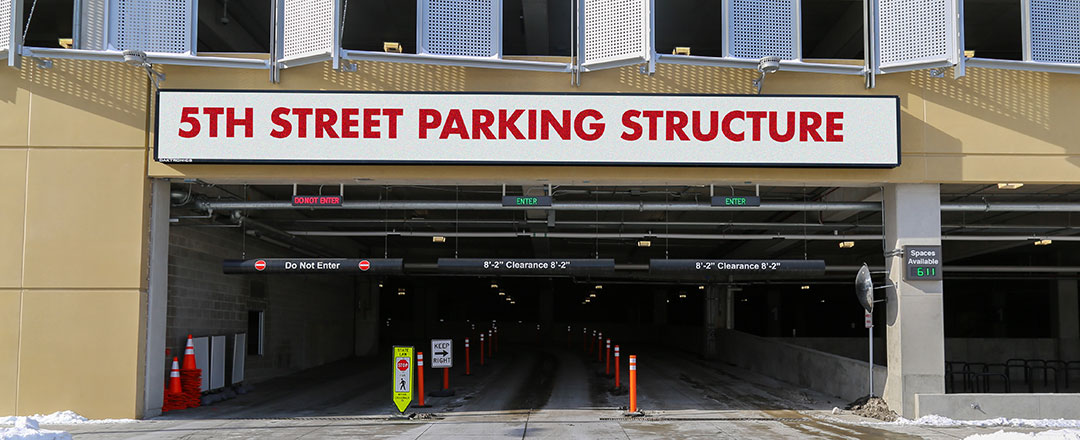

Parking Garage East Ribbons
Spacing: 13HD
Dimensions: 3'7" x 39'7" (1.1 m x 12.07 m)
Spacing: 13HD
Dimensions: 3'7" x 26'5" (1.1 m x 8.04 m)
![Parking Garage North Ribbon](/media/cu1arz2o/integrated-systems_parking-garage-north-ribbon.jpg)

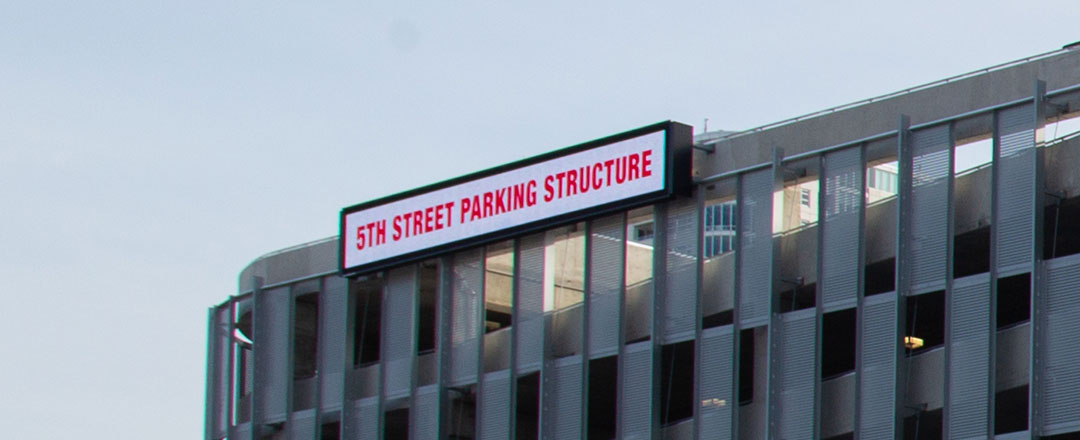

Parking Garage North Ribbon
Spacing: 13HD
Dimensions: 4'10" x 39'7" (1.46 m x 12.07 m)

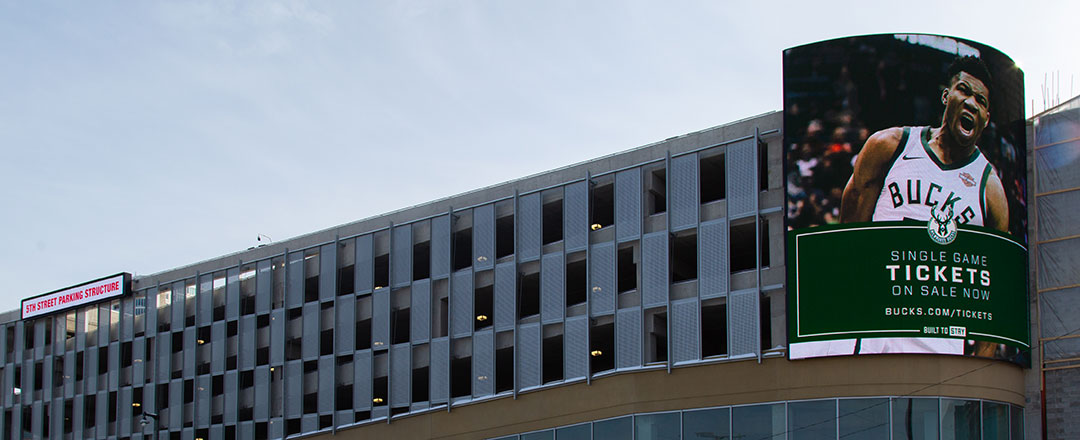

![Parking Garage North Marquee](/media/knqliaug/integrated-systems_parking-garage-north-marquee.jpg)
Parking Garage Marquee
Spacing: 13HD
Dimensions: 39'7" x 37'2" (12.07 m x 11.34 m)
![Northwest Entry Display](/media/ce0jrd2w/integrated-systems_northwest-entry.jpg)

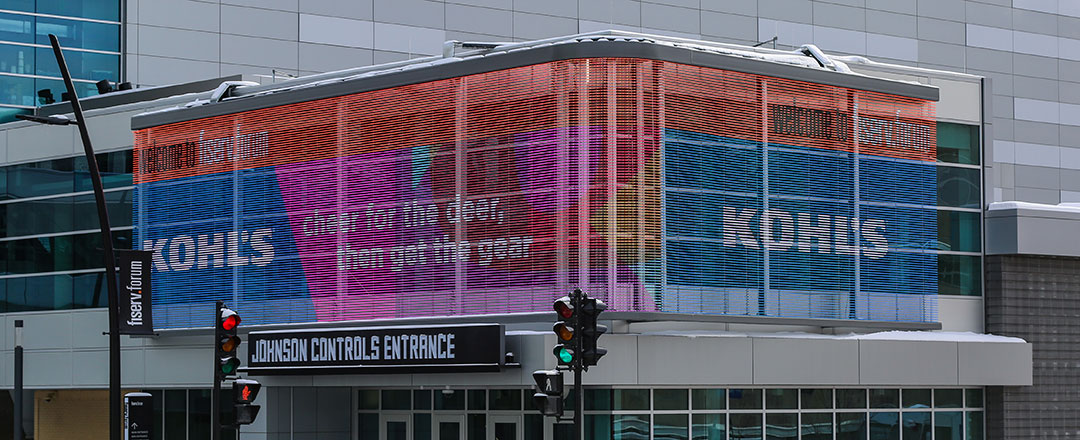

Northwest Entry
Spacing: 25 mm
Dimensions: 15' x 87'3" (4.85 m x 26.6 m)

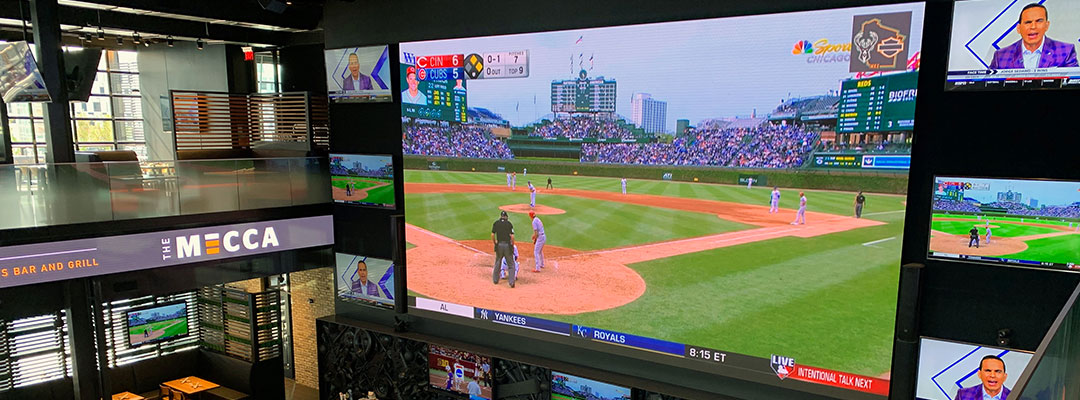

![Mecca Bar](/media/bu0iqsgh/integrated-systems_mecca-bar.jpg)
Mecca Bar
Spacing: 4 mm video display
Dimensions: 17'8" x 31'2"
(5.39 m x 9.51 m)
Spacing: 4 mm ribbon display
Dimensions: 2'1" x 47'10"
(.63 m x 14.58 m)
Spacing: 4 mm ribbon display
Dimensions: 2'1" x 40'7"
(.63 m x 13.36 m)
Spacing: 4 mm ribbon display
Dimensions: 2'1" x 34'4"
(.63 m x 10.46 m)
Industry-leading Control System
Integrating every display at Fiserv Forum, Daktronics powerful Show
Control System runs the show. This industry-leading system provides
a combination of display control software, world-class video processing,
data integration and playback hardware that forms a user-friendly
production solution.
Sustaining Your Investment
Throughout the years and each installation process, Daktronics performance and reliable service staff has supported the Bucks and their needs. After installation, our team remains committed to providing you with the best service in the industry. This includes experienced, reliable local service technicians available to support the installation 24/7. We provide one number to call if there are any issues that need to be resolved and will be there for your team throughout the lifetime of your display system.
We're excited to continue this long-standing partnership with the Milwaukee Bucks since the mid-1990s. It's great to be able to once again provide them with cutting-edge technology as they move to a new venue.
